Photonic Lattice- Photonic Crystal Polarizing Optical Components

Photonic Lattice provide optical elements, optical modules, inspection devices, custom development, and contract testing services using our unique photonic crystal technologies

Innpho- Polarizer /Isolator/ Fiber-Optic Coupling Lenses/ Beam Expanders in the mid-IR

InnPho specialized applications include mid-IR and quantum-cascade laser applications; focusing objectives for launching into fibers; polarization in the mid-IR, with calcite polarizers limited to 1.9 μm, and YVO4 to 4.8 μm; and wide-band polarizers covering 2 μm to 12 μm.

EXCELITAS- LINOS- UV/Vis/IR optics

Excelitas offers a wide range of standard LINOS® UV/Vis/IR optics to meet your scientific research, product development and photonic transmission needs. Select from more than 4,800 optical components including plano-convex, Biconvex, Aspheres, Achromats, Thin-Film coatings, plano optics, mirrors, polarization optics and optical design software.

HAAS- Laser Beam Benders, Laser process Heads

Haas LTI designs and manufactures Laser Beam Benders, Laser Focus Heads, Capacitive Height Sensing Laser Heads, Laser Beam Delivery Systems, Beam Expanders, Process Heads compatible with IPG Fiber laser, Process Heads compatible with Synrad CO2 laser and more.

Photonic Lattice founded in Sendai, Japan in 2002. It’s core technology is photonic crystal technology, in which micro-polarizer arrays with various axis directions are freely patterned and stacked on a single wafer using sputtering technology. This technology is used as a core component in optical communications (polarization multiplexing), semiconductors (inspection using DUV light), precision processing (beam shaping), and other cutting-edge equipment in various fields.

Today, through research and development of applied technologies such as special optics and computational algorithms, we have realized unique products such as our proprietary birefringence measurement system, polarization high-speed camera, ultra high-speed and high-sensitivity thermal imaging camera, and carbon dioxide imaging system, enabling us to visualize and measure phenomena that were previously difficult.

PRODUCT

We provide optical elements, optical modules, inspection devices, custom development, and contract testing services using our unique optical technologies.

• ● Photonic Crystal Polarizing Optical Components
• ● 2D Birefringence Measurement System
• ● In-line/off-line mapping-type birefringence measurement system
• ● High-speed infrared camera / Infrared Measurement Equipment
• ● Ellipsometric measurement
• ● High-speed Polarization Camera
• ● Polarization Imaging Camera

Photonic Crystal Polarizing Optical Components

Ultra-high integration polarizers and waveplates using photonic crystals.

They feature high resistance to ultraviolet and freedom in the integration pattern layout.

01 Operating Wavelength ranging from DUV to near Infrared

Operating wavelength can be chosen in the 250nm～1600nm range, for which we provide an optimal design given our customer requirements (specs).

02 Very Precise Control of Axis Orientation

We provide very accurate control for axis orientation of polarizers and waveplates, which can be tuned finely over the surface, in areas as small as a 1μm.

03 High-Power, High Heat Resistance

The components are made of inorganic materials, making them very resistant to high-power light input. They are also heat-resistant, having almost no temperature dependence.

04 Outstanding Optical Properties

With optional Anti-Reflection (AR) coatings, the elements exhibit very small absorption & diffusion, while providing high transparency. Moreover, phase plate elements are True-Zero Order, making them ideal for applications requiring small wave front perturbation, while providing very small dependence on incident angle.

Photonic Crystal Polarizing Optical Components listed below:

Custom Polarizer & Phase Plates

Our products can be customized not only for the optical properties, but also for the shape and the spatial distribution of those properties. In particular, they can be made non-uniformly, having a segmented structure or a curved axis along the surface.

Customization of the patterned polarizer/waveplate is welcome.

Polarizer Specifications

Waveplate Specifications

Half-Mirror Polarizer for Laser Cavity

Reflectivity for each polarization can be tuned separately. As a half-mirror in a laser resonance cavity, the element is used to generate and select the output polarization of the laser. Because of its inorganic nature, the element can withstand very high optical power.

Please contact us for patterning and outer size.

True Zero Order Waveplate/Ultra-Violet Polarizers

Photonic crystal waveplates are reliable and perfect zero-order waveplates with small incident angle dependence.

For example, a zero-order half-wave plate made of quartz for a wavelength of 266 nm in the ultraviolet region would be about 11 μm thick, but a photonic crystal is deposited on a quartz plate, making it easy to handle.

In addition, since the material is composed entirely of inorganic materials such as hafnium oxide, it remains unchanged even at high temperatures of 400°C and has a high degree of reliability.

The insertion loss is comparable to that of a quartz plate, and multiple axial orientations can be provided on a single element.

Polarizer Specifications

Waveplate Specifications

Ultra-thin waveplate for optical communications

It has insertion loss comparable to that of a quartz plate and can have multiple axial orientations on a single element.

Compact and free polarization control can be realized in optical transceivers, optical modulators, receivers, and wavelength selective switches (WSS) in digital coherent systems.

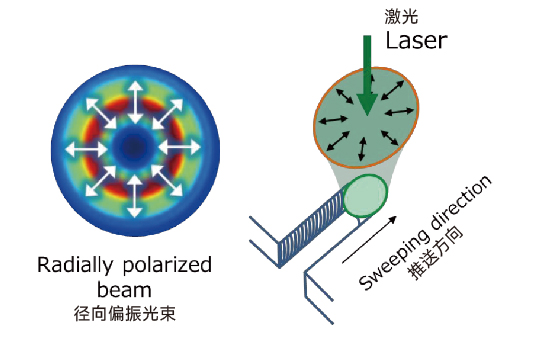

Axial polarization conversion element SWP Series

A waveplate with 12 axial-azimuth regions that can realize axis-oriented polarization simply by inserting it into the optical path.

It converts linear polarization into radial (radial) or concentric (azimuthal) polarization.

The high transmittance achieves a conversion efficiency of almost 100%.

It is effective in optical tweezers, laser processing, etc.

Wavelength/size is available on request.

Innovation Photonics was launched in December 2009 by Don Wilson, a pioneer and multiple-patent awardee in photonics (precision optics, engineering and design, isolators, fiber-optic configuring devices, telescopes) since 1964.

InnPho specialized applications include mid-IR and quantum-cascade laser applications; focusing objectives for launching into fibers; polarization in the mid-IR, with calcite polarizers limited to 1.9 μm, and YVO4 to 4.8 μm; and wide-band polarizers covering 2 μm to 12 μm.

Products:

• ● Mid-IR Isolators
• ● 4.5 μm ISOLATORS
• ● WideBand IR POLARIZER 2 μm – 12 μm
• ● ShortCell IR POLARIZER 3 μm – 11 μm
• ● Infrared Polarization Rotator
• ● Flat-Top Beam Expander
• ● Fiber-Optic Coupling Lenses
• ● Mid-IR Focusing Objectives 2 μm to 12 μm
• ● Fiber-Optic Collimators
• ● Mid-IR Fiber Collimators
• ● IR Fiber Cables

Springing from our Qioptiq® heritage, Excelitas offers a wide range of standard LINOS® UV/Vis/IR optics to meet your scientific research, product development and photonic transmission needs. Select from more than 4,800 optical components including plano-convex, Biconvex, Aspheres, Achromats, Thin-Film coatings, plano optics, mirrors, polarization optics and optical design software.

LINOS Achromats & Lens Systems

Springing from our extensive Qioptiq® optics heritage, Excelitas now offers a wide range of LINOS® Achromats and Achromat Lens Systems. Mounted or unmounted, coated or uncoated, positive or negative focal lengths... we have the exact specifications to meet your optical requirements for complex precision optics integration into your bench setups and system level products.

LINOS Mirrors

Excelitas offers a wide range Metallic, Hybrid and Dielectric LINOS® Mirrors in Plano and Concave formats from our extensive Qioptiq® optical heritage. Both broadband and high-reflectivity mirrors for the most common discrete wavelengths are available directly from the factory.

LINOS Optical Coatings

From Laser Mirrors and Filters to Beamsplitters and Anti-Reflective Coatings, the extensive range of LINOS® Thin-Film Coatings from Excelitas can meet your most stringent requirements.

LINOS Polarization Optics

Excelitas offers an extensive line of LINOS® Polarizers, Polarizing Filters and Wave Plates made of high-quality materials for the best possible transmission.

LINOS Singlets

From convergent and diffuse lenses to best-form lenses and aspheres, our extensive selection of simple lens singlets, with various focal lengths and diameters assure you of the perfect components for your application.

VariFi Linear Variable Filters

Excelitas VariFi™ linear variable filters provide a unique solution for controlling background noise and higher-order effects in spectrometers. Our proprietary technology enables cost-effective production of linearly variable filters over a wide range of sizes.
